Countersunk Head Knurled Rivet Nuts - Stainless Steel
Shipping calculated at checkout.
Key Features
- ✓ Certified Durability
- ✓ 3 Year Extended Warranty
- ✓ 30 Day Free Returns
- ✓ Free Technical Support From Our Engineers
Buy More & Save
DESCRIPTION
Discover about Countersunk Head Knurled Rivet Nuts
Introducing the Stainless Steel Countersunk Head Knurled Rivet Nuts by RivetGo, engineered to deliver a seamless flush finish for applications requiring a smooth surface. These rivet nuts are perfect for creating reliable threads in thin materials while ensuring a professional look. Crafted from stainless steel, they offer excellent corrosion resistance for long-lasting performance. Check out other knurled rivet nuts: Flat Head Knurled Rivet Nuts and Reduced Head Knurled Rivet Nuts.
Key Features
Unlike flat head or reduced head options, the Countersunk Head Knurled Rivet Nuts feature a countersunk head that sits flush with the material surface, optimizing aerodynamics and aesthetics. The knurled body provides excellent anti-rotation properties in softer materials, while the design requires a countersunk hole, making it ideal for materials thicker than 1.5mm to maintain structural integrity.
Applications
Perfect for automotive rivet nuts applications like dashboard assemblies, aerospace components, and electronics where a flush finish is critical, these rivet nuts come in M3 rivet nuts to M12 rivet nuts for versatile use. Pair with our Rivet Nut Tools for easy installation.
Shipping Information
Weight (100 items):
M3 0.12kg
M4 0.14kg
M5 0.21kg
M6 0.39kg
M8 0.61kg
M10 0.88kg
M12 1.03kg
TECHNICAL SPECIFICATION
Understanding the Size Chart:
- Thread Size (d): The metric thread size (e.g., M3, M4) compatible with matching bolts or screws.
- Grip Range (e): The range of material thickness the rivet nut can securely fasten (e.g., 0.5-2 mm).
- Hole Size (H): The recommended diameter of the hole to be drilled in the material for installation.
- Head Height (E): The height of the rivet nut head after installation, affecting the protrusion above the surface.
- Head Diameter (B): The diameter of the rivet nut head, determining the contact area with the material.
- Overall Length (L): The total length of the rivet nut before installation.
- Installed Length (L₂): The length of the rivet nut after installation, indicating the space it occupies.
We offer custom sizes for bulk orders, contact us to discuss your requirements.
| d | e | H | E | B | L | L₂ |
|---|---|---|---|---|---|---|
| Thread Size | Grip Range | Hole Size | Head Height | Head Diameter | Overall Length | Installed Length |
| M3 | 1.5 - 2 | 5 | 1.5 | 7 | 9 | 5.9 |
| M4 | 1.5 - 3.5 | 6 | 1.5 | 8 | 12 | 6.5 |
| M5 | 1.5 - 4 | 7 | 1.5 | 9 | 13.5 | 7.8 |
| M6 | 1.5 - 4 | 9 | 1.5 | 12 | 15.5 | 8.6 |
| M8 | 2 - 4.5 | 11 | 1.5 | 14 | 18.5 | 10.6 |
| M10 | 2 - 4.5 | 13 | 1.8 | 16 | 21 | 13.9 |
| M12 | 2 - 5 | 16 | 1.8 | 19 | 24 | 17.2 |
Note: All measurements are in millimeters (mm) unless otherwise specified, with tolerances applicable.
Understanding the Size Chart:
- Thread Size (d): The metric thread size (e.g., M3, M4) compatible with matching bolts or screws.
- Grip Range (e): The range of material thickness the rivet nut can securely fasten (e.g., 0.5-2 mm).
- Hole Size (H): The recommended diameter of the hole to be drilled in the material for installation.
- Head Height (E): The height of the rivet nut head after installation, affecting the protrusion above the surface.
- Head Diameter (B): The diameter of the rivet nut head, determining the contact area with the material.
- Overall Length (L): The total length of the rivet nut before installation.
- Installed Length (L₂): The length of the rivet nut after installation, indicating the space it occupies.
We offer custom sizes for bulk orders, contact us to discuss your requirements.
TECHNICAL DETAILS
| Detail | Info |
|---|---|
| Head Shape | Countersunk Head |
| Material | 304(A2) Stainless Steel |
| End Type | Open End |
| Body Form | Knurled |
| Finish | Natural |
| Metric or Imperial? | Metric |
Head Shape: The design of the rivet nut’s head, affecting its fit and load distribution. Options include Flat Head, Reduced Head, and Countersunk Head.
Material: The composition of the rivet nut, impacting strength and resistance. Options include Stainless Steel, Steel, Aluminum, and Brass. Note: At RivetGo, we only sell Stainless Steel rivet nuts.
End Type: Whether the rivet nut’s bottom is open or closed, affecting sealing and bolt fit. Options are Open End and Closed End.
Body Form: The texture or shape of the rivet nut’s body, influencing grip and anti-rotation. Options include Knurled, Hexagon, and Smooth. Note: At RivetGo, we only sell Knurled and Hexagon body forms.
Finish: The surface treatment of the rivet nut, affecting appearance and durability. Options include Natural, Zinc-Plated, Passivated, and Painted. Note: At RivetGo, we only sell rivet nuts with a Natural finish.
Metric or Imperial?: The thread size measurement standard, determining bolt compatibility. Options are Metric (e.g., M3, M4) and Imperial (e.g., 1/4-20). Note: At RivetGo, we only sell Metric rivet nuts.
ADDITIONAL RESOURCES
Installation Guide
- Drill a countersunk hole in the material matching the specified Hole Size (H) and countersink angle in the Size Chart.
- Insert the Countersunk Head Knurled Rivet Nut into the hole, ensuring the head sits flush with the material surface.
- Use a compatible rivet nut tool to compress and secure the rivet nut, allowing the knurled body to grip the material.
- Thread a matching bolt or screw into the rivet nut to complete the assembly.
Note: Ensure the material thickness falls within the specified Grip Range (e) and is at least 1.5mm for a secure fit.
Technical Notes
- Ensure the material thickness is within the Grip Range to avoid installation failure.
- A properly prepared countersunk hole is essential for a flush finish; use a countersink bit matching the head angle.
- The knurled body provides anti-rotation in softer materials; for harder materials, ensure proper hole preparation.
- Open End design allows flexibility for bolts of varying lengths but is not suitable for waterproof applications.
- Recommended for use with stainless steel bolts to prevent galvanic corrosion.
REVIEWS

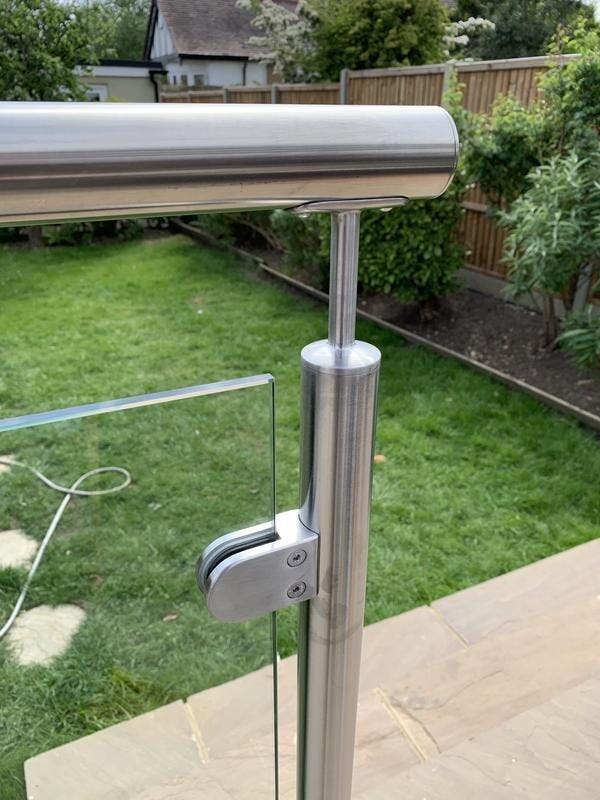

Stainless steel & glass balustrade ![User picture]()
![User picture]()
Pipe Fitting Training Rig Variable mains AC power
Customer Reviews
Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A

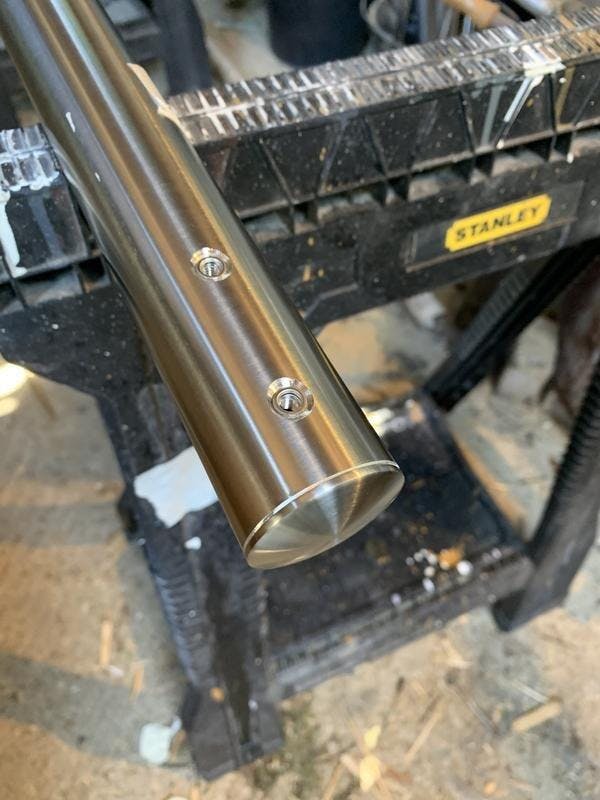

I needed to bolt the handrail to the saddles. The tube was I bit thin to tap so I used countersunk m5 stainless steel rivnuts. The countersinking meant I could get the handrail to sit down flush with the saddles.
